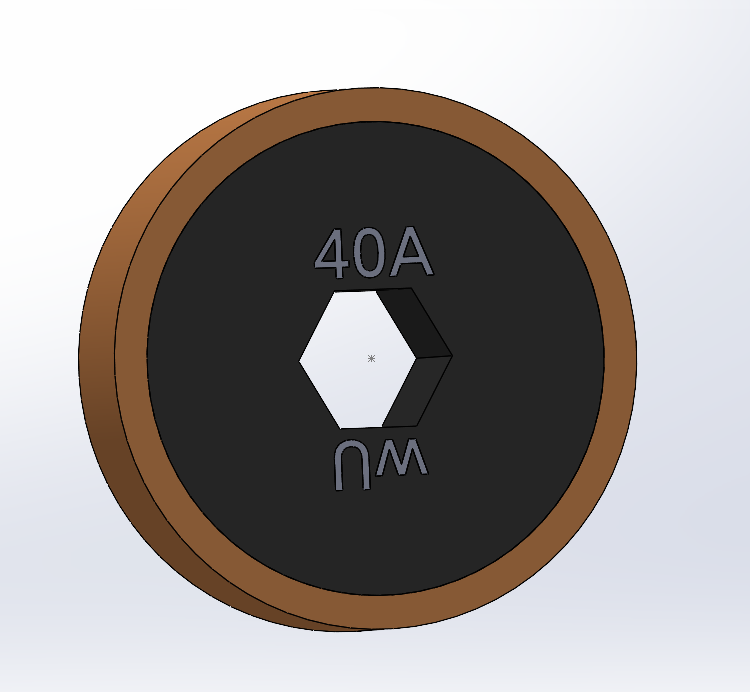

2"By.5" Hardwheel

The HardWheel was designed with two primary use cases in mind. As the name suggests, it functions as a standard hard wheel, but it can also be used as a shooter wheel. When used for shooting applications, the wheel is designed to accept additional weight plates to increase rotational mass and improve performance. the wheels can be stacked together to create a thicker shooter wheel.

For optimal performance and safety, we recommend operating this wheel at speeds no greater than 6,000 RPM.

Dimensions

Wheel:

OD 2” by .5”

Hex Hub:

Loose fit on 0.5” hex shaft with rounded rounded corners

Free fit on 0.5” hex shaft with Sharp corners

Materials

Tread: Urethane

Hub: PETG-CF

Weight

Without weight:

Step File
